OLD RADIO
February 2007 Column

AERO Station Monitor and Converter (1929)

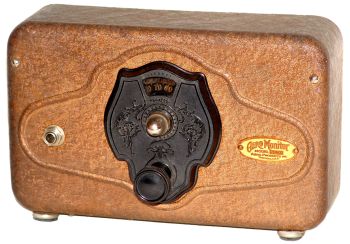

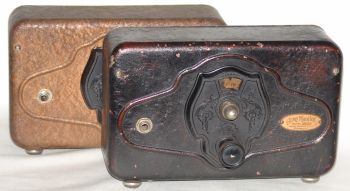

AERO Monitors - A Black model was available. Monitors have a Phone Jack on the left	AERO Monitor - Front view

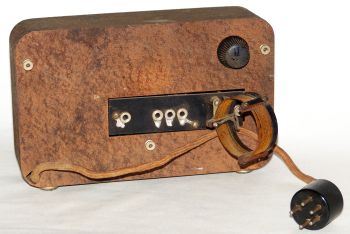

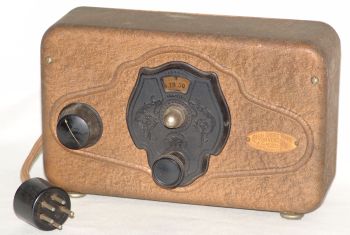

AERO Short Wave Converter - Note knob, on the left where Phone Jack is located on Monitor.	AERO SW Converter, Rear - Shows Antenna Coil, other coil is missing

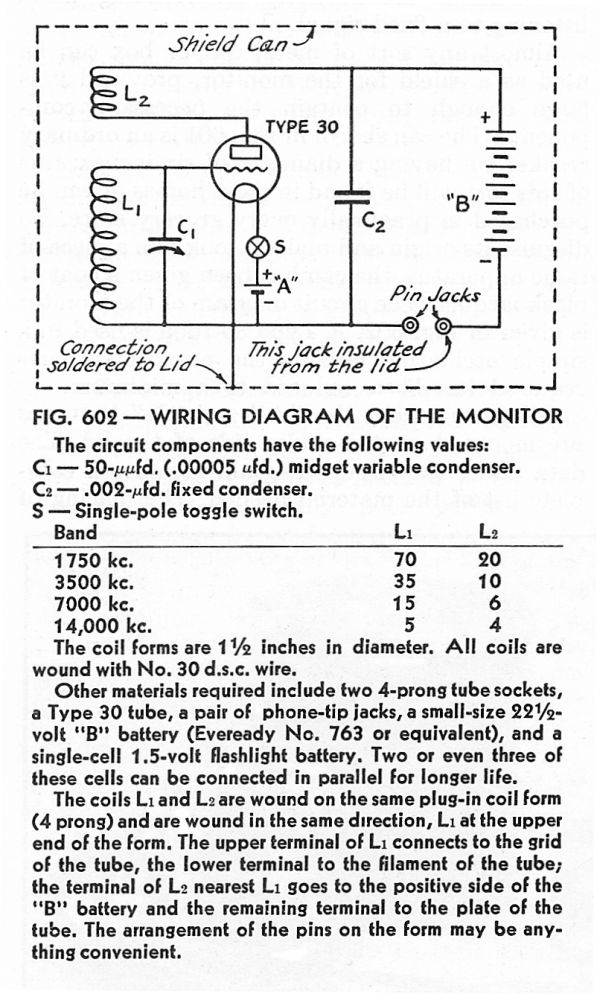

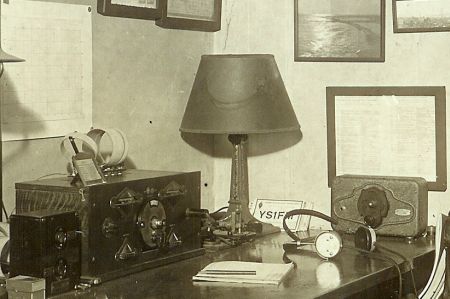

Click here for Schematic of an almost exact monitor from the ARRL Handbook Shack of R. W. Barrington showing an AERO monitor on his receiving table.
